Fixing syntax highlighting issues in Sublime Text 3


My two main IDEs nowadays are Intellij Idea and Sublime Text. I basically like to use IDEA for strongly-typed languages and Sublime for weakly-typed languages. However, not long ago I found a bug on Sublime!

In version 5.4 of PHP, they introduced a new syntax for arrays that is reminiscent of the JSON notation:


// Old PHP Array syntax
$primes = array(1, 2, 3, 5, 7);

// New PHP Array syntax
$primes = [1, 2, 3, 5, 7];

Even though support for this new syntax within the Sublime codebase seems to be limited, oddly enough the colouring seems to be working properly. But I’ve found a case where it’s not. This case was probably not discovered because PHP people don’t like type-hinting!

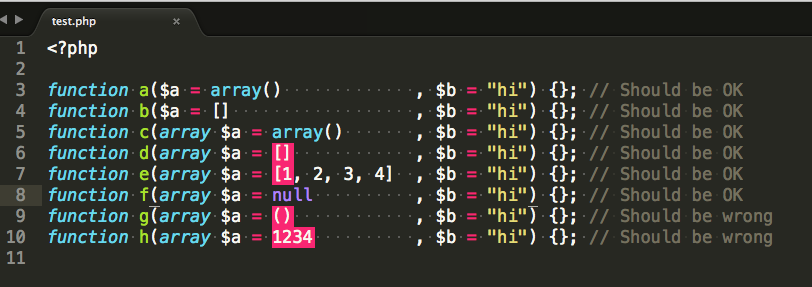

Highlighting Issue - Before

Now, here’s how to fix it


Opening the language file

The first thing we need to do is to open the Language package (in this case the PHP one). For this, we need to install the PackageResourceViewer plugin.

Within Sublime’s Command Palette, type:

PackageResouceViewer: Open Resource

Then select the PHP resource and then finally PHP.tmLanguage.

You’ll find a very scary xml file. This is the annoying part. The guides recommend that you use the AAAPackageDev package to convert this xml to yaml, thus making it an order of magnitude easier to work with it. Unfortunately, it also says that it doesn’t convert perfectly, and this defeats the purpose of using it! I did something different.

Editing the language file

This is the good news: you can edit this xml freely (please keep a copy of the original!), and the changes become instantly applied on PHP-syntax-enabled files upon save!

To make sense of the xml monster, just look up the yaml file on the Github repository. Make sure your Sublime and the GH code are for the same version; otherwise you’re not actually looking at the same code. Having the latest version of Sublime installed should be enough. Looking at the yaml file makes it much easier to spot the place where you need to make the regex change.

After about half an hour of tinkering with regexes, I finally found a modification that worked for all cases I could think of. The problem that held me up was that I was trying to match either 2 groups (array and () or 1 group ([), so I needed a wrapping group with two cases (i.e. (a|b)) that wasn’t actually capturing anything per se. The solution to this was Passive (non-capturing) groups (i.e. (?:...)). I mention this because you might need it; when you see how the classes are picked you’ll understand why.

Highlighting Issue - Before

Fun fact

Before I came up with the idea of passive capturing groups I naturally thought of lookbehind assertions (i.e. ?<=). When it didn’t work I facepalmed: “of course! it’s xml; I have to escape it (i.e. &lt;)”. When it didn’t work again I started googling. It seems the guys gave up on lookbehinds altogether for this reason so they just didn’t implement it, even though Oniguruma supports it :) Good idea though; lookbehinds are slow and not universally supported (Javascript, Ruby < 1.9).


Once you are done and you’re sure it works properly, share your contribution to the World! This was my Github issue for the PHP syntax fix.

Happy open sourcing!
