10 Gotchas for building a universal crypto candlestick iterator in Go


Jul 27, 2022
11 minute read

TL;DR

I’ve recently open sourced a universal crypto candlestick iterator library in Go called crypto-candles:

https://github.com/marianogappa/crypto-candles

It’s being used to power the Crypto Predictions Tracker: the only unbiased, automated accountability watchdog for crypto predictions on the Internet.

There is no Go library alternative I’ve found, or I would have used it. There are some exchange SDKs, though.

In this blogpost, I share all the interesting challenges I found while building this library over the past few months.

What is a candlestick?

Candlesticks, also known as OHLC (i.e. Open, High, Low, Close), Klines and Bucketed Trades, are a way to display the high, low, open, and closing prices of crypto market pairs (and traditional securities) for a specific period.

Candlestick

Candlestick charts are a common sight for crypto investors, and they are used to make buy/sell decisions, either manually or via bots or some other automated mechanisms.

Crypto exchanges like Binance or Coinbase expose APIs with market information for all their supported market pairs (e.g. BTC/USDT) and allow you to consume them for free within fair-use limits.

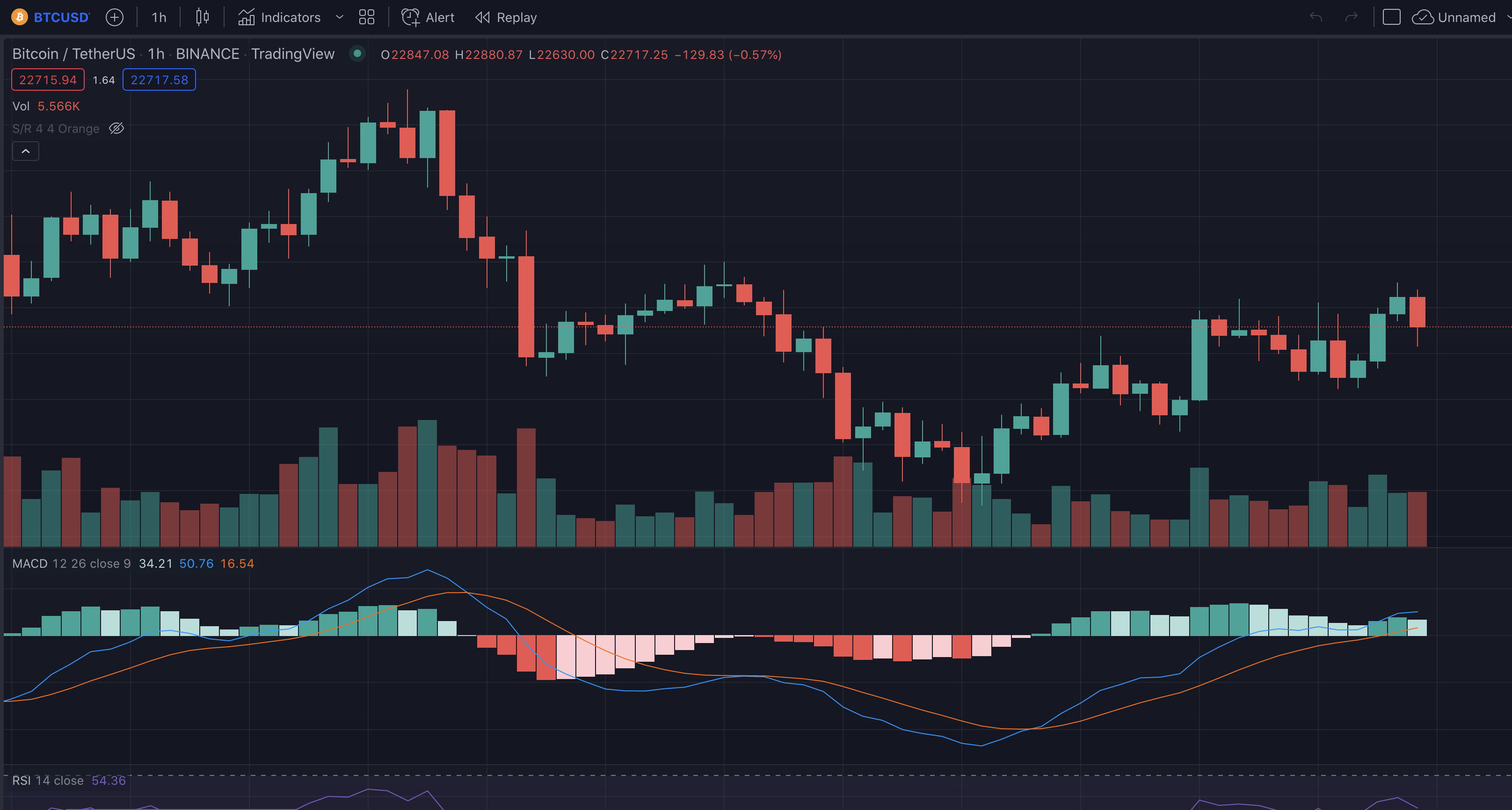

Candlestick chart

What is a crypto candlestick iterator?

A Crypto Candlestick Iterator is an iterator that you construct for:

  • a given provider (e.g. Binance, Coinbase)
  • a given market pair (e.g. BTC/USDT)
  • a given starting timestamp (e.g. “2020-07-04T01:02:03Z”, here represented in ISO8601 format)
  • and a given candlestick interval (e.g. minutely, hourly, daily).

Example in crypto-candles:

	m := candles.NewMarket()
	iter, err := m.Iterator(
		common.MarketSource{
			Type: common.COIN,
			Provider: common.BINANCE,
			BaseAsset: "BTC",
			QuoteAsset: "USDT"
		},
		time.Now().Add(-12*time.Hour), // Start time
		1*time.Hour,                   // Candlestick interval
	)

Once constructed, calling .Next() on it returns either the next available candlestick in your specified interval, or an error:

	candlestick, err := iter.Next()

A candlestick looks like this when marshalled to JSON:

{"t":1641096000,"o":47329.47,"c":46910.3,"l":46770.23,"h":47415.73}

Where:

  • o: Open price
  • c: Close price
  • l: Low price
  • h: High price

…of the BTC/USDT market pair

…on BINANCE

…at the hour spanning from the timestamp t and up to t + candlestickInterval.

What does “universal” candlestick iterator mean?

It means that it supports all major exchanges.

Usually, you use the API or SDK of the exchange you want to use. If you need to use more than one, it gets tricky.

What’s the use case for a universal candlestick iterator?

  1. Data for plotting candlestick charts. If you need 2+ exchanges.

  2. Data for backtesting trading strategies. If you need 2+ exchanges.

  3. Data for being a watchdog for influencing statements like this one.

And with crypto-candles, you get caching, retrying on errors, patching of data gaps and concurrency-safety for free.

The meaty part: gotchas!

Building this library through the months has been a big challenge, and in this section I’ll list all of the important gotchas I’ve found during this process.

Gotcha 1: Not all exchanges provide historical candlesticks

They all provide current prices. Not all provide historicals. Some do in very tricky ways.

FTX does:

$ curl -s "https://ftx.com/api/markets/BTC/USDT/candles?resolution=60&start_time="$(date -j -f "%Y-%m-%d %H:%M:%S" "2020-04-07 00:00:00" "+%s")"&end_time="$(date -j -f "%Y-%m-%d %H:%M:%S" "2020-04-07 00:02:00" "+%s")"" | jq '.result | .[]'
{
	"startTime": "2020-04-06T23:00:00+00:00",
	"time": 1586214000000,
	"open": 7274,
	"high": 7281.5,
	"low": 7272,
	"close": 7281.5,
	"volume": 0
}
{
	"startTime": "2020-04-06T23:01:00+00:00",
	"time": 1586214060000,
	"open": 7281.5,
	"high": 7281.5,
	"low": 7277,
	"close": 7280,
	"volume": 0
}
{
	"startTime": "2020-04-06T23:02:00+00:00",
	"time": 1586214120000,
	"open": 7280,
	"high": 7280,
	"low": 7271.5,
	"close": 7274,
	"volume": 0
}

But on Huobi, the docs say:

This API doesn’t support customized period, refer to Websocket K line API to get the emurated period value.

Not sure what that means, but I don’t think Websockets do either.

Kraken says they do, but they silently ignore their “since” parameter if you go over a very short threshold to the past. Details in this Stack Overflow answer.

You can still get them, if you calculate them yourself, by getting all trades and bucketing them yourself. It’s linear time. But you have no control on what n is, so don’t.

Phemex has only a websocket-based “subscribe kline” endpoint, but only gets you up to 1000 candlesticks to the past. Then you’re stuck with Kraken-style Query Trades History endpoint.

Gotcha 2: Rate limiting

All exchanges must have a rate-limiting strategy to prevent malicious or buggy clients from DDoSing their APIs. Otherwise you’d kill them!

In general (not always!), they give you an HTTP 429 status code when they want you to enhance your calm. If you don’t, they IP-ban you temporarily.

In general, candlestick endpoints are “public market data” and don’t require an API Key. But if you get one, they might be more tolerant with rate-limiting.

On Binance, the docs say that if you ignore the 429s, you get IP banned for 2 minutes, and up to 3 days for repeat offenders. They send a Retry-After header on the 429s with how many seconds you should sleep.

On Coinbase, the docs here and here say they allow ~3-6 requests per second.

FTX docs make no sense. Don’t worry, you’re fine.

On Kucoin, the docs lie, so you don’t need a link. You’re gonna get 429’d no matter what you do. Just back-off.

The other ones are fine, more on that later.

Ideally, don’t make them 429 you. Do this:

  • Calculate the truncated current minute of your request: time.Now().Add(-1 * time.Minute).Truncate(time.Minute)
  • Keep track of the last requested minute, and a counter
  • If the current minute of your request equals the last, increment the counter (and reset it if not)
  • If the counter exceeds the exchange’s limits, sleep!

Don’t use concurrency unless:

  1. Every goroutine talks to a different exchange
  2. You have a pool of IPs and a proxy, and every goroutine talks to a separate (exchange, IP) tuple
  3. You’re willing to mutex the hell out of your code

Gotcha 3: Some exchanges don’t respect their rate limit documentation

You’re following the rules? The rules are wrong.

On Kucoin, the docs say that they allow an IP to make 10 requests per second. They don’t. There are many, Reddit, links out there with people fuming about their aggressive undocumented rate limiting practices.

On Bitfinex, the docs say they allow 10-90 requests per minute, but I ran this script that made ~140 requests per minute for many minutes and I cannot get it to rate limit me:

while [ TRUE ]; do echo $(curl "https://api-pub.bitfinex.com/v2/candles/trade:1m:tBTCUSD/hist?limit=3&sort=1&start=1564774820000" | jq .); done

Gotcha 4: Candlestick data may be incomplete

Coinbase docs explicitly say there are gaps in the data. And it’s true. More often in the 1 minute interval.

Problems it causes:

  1. You’re plotting a chart. Is it ok to leave a gap in it?

  2. You’re sending candlesticks to something. The receiving end hardcodes the timestamp to startTimestamp + i * interval. Bug.

  3. You’re backtesting a strategy. Your bot receives a candlestick with price 0 (or a gap) and freaks out. Bug.

Possible solution: fill gaps by cloning previously known prices. Doesn’t work if the gap is at the start.

Gotcha 5: You won’t get the starting candlestick time you asked for

The final boss! Trickiest gotcha.

You request candlesticks starting at 2020-07-04T01:02:03Z. But you won’t get that starting timestamp.

Exchanges snap your starting time to the data they have, and they mostly do the same. Mostly.

  • For 1m interval: they will mostly start at 2020-07-04T01:03:00Z (i.e. the next minute).
  • For 1h interval: they will mostly start at 2020-07-04T02:00:00Z (i.e. the next hour).
  • For 1d interval: they will mostly start at 2020-07-05T00:00:00Z (i.e. the next day).

You get the point. Do this:

	snapTime := startTime.Add(interval).Truncate(interval)

FTX for minutely candlesticks:

$ curl -s "https://ftx.com/api/markets/BTC/USDT/candles?resolution=60&start_time="$(TZ=UTC date -j -f "%Y-%m-%d %H:%M:%S" "2020-07-04 00:00:33" "+%s")"&end_time="$(TZ=UTC date -j -f "%Y-%m-%d %H:%M:%S" "2020-07-04 00:03:33" "+%s")"" | jq '.result | .[] | .startTime'
"2020-07-04T00:01:00+00:00"
"2020-07-04T00:02:00+00:00"
"2020-07-04T00:03:00+00:00"

Bitstamp is the only one that snaps to the past, here on minutely:

$ curl -s "https://www.bitstamp.net/api/v2/ohlc/btcusd/?limit=3&step=60&start="$(TZ=UTC date -j -f "%Y-%m-%d %H:%M:%S" "2020-07-04 00:00:33" "+%s") | jq '.data.ohlc | .[] | .timestamp | tonumber | todate'
"2020-07-04T00:00:00Z"
"2020-07-04T00:01:00Z"
"2020-07-04T00:02:00Z"

What about intervals that are not divisors of 24-hour, e.g. 5-hour? They don’t support them!

And don’t get me started on weekly. Some support weekly. It’s important.

Binance & Bitfinex work with the same truncation strategy:

	tm, _    := time.Parse(time.RFC3339, "2020-07-04T01:02:03Z")
	interval := 7 * 24 * time.Hour
	snap     := tm.Add(interval).Truncate(interval)

Which produces: 2020-07-06T00:00:00Z. Let’s see if it’s true:

$ curl -s 'https://api.binance.com/api/v3/klines?symbol=BTCUSDT&interval=1w&limit=3&startTime='$(TZ=UTC date -j -f"%Y-%m-%d %H:%M:%S" "2020-07-04 01:02:03" "+%s000")| jq '.[] | .[0] | . / 1000 | todate'
"2020-07-06T00:00:00Z"
"2020-07-13T00:00:00Z"
"2020-07-20T00:00:00Z"

Kucoin snaps to Thursdays, and don’t ask me why!

FTX is a unique case. They support 1-day, 2-day, …, 30-day. On these, they snap your timestamp to next day (or same if it’s already start of day), and then give you multiples starting on that day. Here’s an example:

$ curl -s "https://ftx.com/api/markets/BTC/USDT/candles?resolution=259200&start_time="$(TZ=UTC date -j -f "%Y-%m-%d %H:%M:%S" "2020-07-04 01:02:03" "+%s")"&end_time="$(TZ=UTC date -j -f "%Y-%m-%d %H:%M:%S" "2020-07-10 00:00:00" "+%s")"" | jq '.result | .[] | .startTime'
"2020-07-05T00:00:00+00:00"
"2020-07-07T00:00:00+00:00"
"2020-07-10T00:00:00+00:00"

Gotcha 6: Order of returned candlesticks varies across exchanges

Most exchanges return ascending order candlesticks. Coinbase and Kucoin return descending. Bitfinex returns descending by default, but can be changed.

Just reverse them. O(n) time, O(1) space:

	for i, j := 0, len(candles)-1; i < j; i, j = i+1, j-1 {
		candles[i], candles[j] = candles[j], candles[i]
	}

Gotcha 7: Exchanges silently ignoring arguments

From Gotcha #1: Kraken ignores the “since” parameter.

FTX is dangerous. In the FTX request, you provide a start_time and an end_time for historical prices.

  • if end_time is not specified, start_time is ignored silently and recent data is returned.
  • if the range between start_time & end_time is too broad, start_time will be pushed forward until the range spans 1500 candlesticks.

Gotcha 8: Invalid market pairs

You can’t request candlesticks for INVALID/USDT. But all exchanges tell you this differently.

HTTP status codes:

  • Bitstamp: 404
  • Kucoin: 200
  • Binance: 400
  • FTX: 404
  • Coinbase: 404
  • Bitfinex: 200

HTTP Payloads:

  • Bitstamp: no payload
  • Kucoin: {"code": "400100", "msg": "This pair is not provided at present."}
  • Binance: {"code": -1121, "msg": "Invalid symbol."}
  • FTX: {"success": false, "error": "No such market: INVALID/USDT "}
  • Coinbase: {"message": "NotFound"}
  • Bitfinex: no payload

Bitfinex is the worst. It’s hard to tell it’s an invalid market pair. It could be that there are no new candlesticks, because your starting time is too recent.

Gotcha 9: Requesting the most recent candlesticks

Be careful! Exchanges mostly don’t care if you ask for non-historical starting times.

Here’s Binance returning 200 OK with the 3-minute BTC/USDT candlesticks for the year 2286!

$ curl -s "https://api.binance.com/api/v3/klines?symbol=BTCUSDT&interval=3m&limit=60&startTime=9999999999000" | jq '.'
[]

Note that if you ask for time.Now().Add(-1*time.Hour), but for daily candlesticks, your day is not over yet!

Even if it’s over, how over is it? Race condition! Your exchange hasn’t finalised bucketing the day yet!

If you plan to cache results, danger zone! Recent candlesticks will change.

I ran experiments to see in practical terms how much to “lag” to current candlesticks, and put that “patience configuration” in the library.

Gotcha 10: Caching results

An iterator has a buffer of results that came from the latest request. That’s all it needs.

But real-world applications will create multiple iterators. A cache is probably needed there. The 80/20 rule suggests 80% of created iterators will be for 20% of the options. You can imagine Binance’s BTC/USDT recent hourly candlesticks being popular.

Caching is hard, but in this case it’s a very sensible architectural choice:

  • Historical candlesticks should not change (meh, except for Gotcha #9)
  • Each cache hit saves up to ~100 milliseconds in HTTP requests
  • Not making requests minimises rate-limiting issues

What about storing cache on filesystem?

Some exchanges even provide all of their historical data as files. Great, ~0 requests! But:

  • Only a few exchanges provide it
  • Cron to download new files, which will break
  • Parsing different file formats for different exchanges
  • Maybe 4-fallback level architecure (i.e. iterator buffer, in-memory cache, filesystem, HTTP request)
  • New challenges (e.g. out-of-disk, permissions, rotating, wholes in data)

How about just an in-memory LRU cache?

  • LRU plays well with 80/20 request distribution
  • Has fixed-size memory (configurable)
  • Inefficient if you restart the process, but a non-invalidating cache scares me; let’s refresh it on restarts

Conclusion

I started tinkering with the idea of building this more than a year ago in this commit of a different repo, and I still feel like I don’t fully get it.

Building this has been hard, but very fun too, and rewarding. It’s MIT licensed so feel free to use it, profit from it, lose money with my bugs, file issues, contribute improvements, etc. Docs are here, but go to the candles folder to see most of it.

I also hope that the Crypto Predictions Tracker becomes popular, so that influencers get some accountability for their predictions. This is good: it will keep them honest, and improve their reputation.

K.I.S.S.!
